| Installation: | Wall Mounted | Type: | Axial Flow Fan |
|---|---|---|---|
| Power Supply: | Electric | Material: | Stainless Steel |
| Speed: | Stepless Speed Regulation | Application: | Refrigeration industry |
| Voltage: | 220V or 380V | Frenquency: | 50Hz/60Hz |
| লক্ষণীয় করা: | air cooled condenser unit,air cooled condensing unit |
||

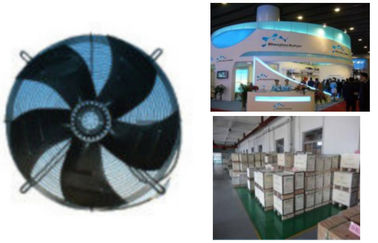

Axial Refrigerator Condenser Fan Motor with 4/6 poles
Specifications:
* 4/6 motor poles
* 220V/50Hz, 380V/50Hz230V/50Hz
* Temperatre:-30-+60 degrees Celsius
* Average lifetime : 30000 hours
1.YWF series axial fan motors are external rotor fan motors. These motors have characteristics of compact structure,convenient installation,energy convervation and high efficiency.
2.The insulation class of the YWF series axial fans motors is B, and the protection class of that is Ip54.All the motors have thermal protector in the winding.
3.The applicable ambient temperature of the fan motors used in condenser is from 0 to -+60 degree. The applicable ambient temperature of the fan motors in evaporators is -30 to 0 degree.
4.The average service life of of motors is over 30000 hours.
5.All motors have got CE approval in Europe and CCC safty certificate in China.
For more model details please check below:
| YWF4D-300 |
| YWF4E-300 |
| YWF4D-350 |
| YWF4E-350 |
| YWF4D-400 |
| YWF4E-400 |
| YWF6E-400 |
| YWF4D-450 |
| YWF4E-450 |
| YWF4D-500 |
| YWF4E-500 |
| YWF4D-600 |
| YWF4E-600 |
| YWF4D-630 |
| YWF4E-630 |
