পণ্যের বিবরণ:
প্রদান:
|
| Type: | Air Conditioner Parts, Compressor | Color: | Black |
|---|---|---|---|
| Model Number:: | VRI30KS-TFP-582 | Refrigerant: | R22 |
| Usage: | Household Appliance | Material: | Stainless Steel |
| use for: | air conditioner | সাক্ষ্যদান: | CE |
| লক্ষণীয় করা: | copeland ac compressor,commercial refrigeration compressor |
||

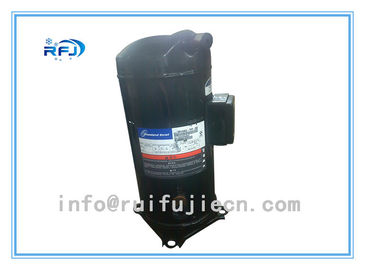

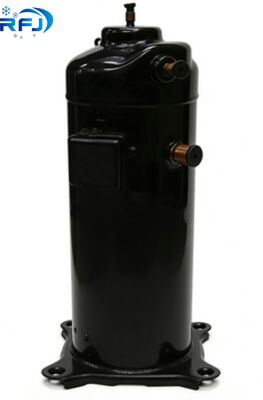

EVI Copeland R22 Compressor , Scroll Type Ac Compressor cooling coils condenser
Best applied cost for air-conditioning chillers,heat pumps,rooftops, dryer,process cooling and multi-evaporator systems.
Perfect match of capacity and power consumption to the desired load.
Widest range of continuous modulation from 10% to 100%.
Highest performance at full load.
Precise suction pressure control with associated energy savings.
Ease of design.
| model | Number of phase | colling capacity | input power W | cop | voltage V | frequency HZ |
Running current | Refrigerant | ||
| btu/hr | w | btu/wxhr | w/w | |||||||
| ZR22K3-PFJ | 1 | 18200 | 5400 | 1730 | 10.50 | 3.1 | 220/240 | 50Hz | 8.00 | R22 |
| ZR22K3-TF5 | 3 | 18200 | 5400 | 1780 | 10.20 | 3.0 | 200/220 | 50Hz | 6.50 | R22 |
| ZR22K3-TFD | 3 | 18200 | 5400 | 1770 | 10.30 | 3.1 | 380/420 | 50Hz | 3.20 | R22 |
| ZR24K3-PFJ | 1 | 20200 | 6000 | 1920 | 10.50 | 3.1 | 220/240 | 50Hz | 9.20 | R22 |
| ZR24K3-TF5 | 3 | 20200 | 6000 | 1920 | 10.50 | 3.1 | 200/220 | 50Hz | 7.10 | R22 |
| ZR24K3-TFD | 3 | 20200 | 6000 | 1920 | 10.50 | 3.1 | 380/420 | 50Hz | 3.50 | R22 |
| ZR26K3-PFJ | 1 | 21700 | 6400 | 2010 | 10.80 | 3.2 | 220/240 | 50Hz | 9.50 | R22 |
| ZR26K3-TF5 | 3 | 21700 | 6400 | 2010 | 10.80 | 3.2 | 200/240 | 50Hz | 7.40 | R22 |
| ZR26K3-TFD | 3 | 21700 | 6400 | 2010 | 10.80 | 3.2 | 380/420 | 50Hz | 3.80 | R22 |
| VR28KM-PFS | 1 | 23000 | 6800 | 2020 | 11.40 | 3.4 | 220 | 50Hz | 9.20 | R22 |
| VR30KM-PFS | 1 | 25000 | 7400 | 2190 | 11.40 | 3.4 | 220 | 50Hz | 10.10 | R22 |
| VR30KS-TFP | 3 | 25000 | 7400 | 2230 | 11.20 | 3.3 | 380 | 50Hz | 4.10 | R22 |
| VR31KM-PFS | 1 | 26600 | 7800 | 2370 | 11.20 | 3.3 | 220 | 50Hz | 11.00 | R22 |
| VR32KS-TFP | 3 | 27000 | 8000 | 2410 | 11.20 | 3.3 | 380 | 50Hz | 4.30 | R22 |
| VR34KF-PFS | 1 | 28200 | 8300 | 2560 | 11.00 | 3.2 | 220 | 50Hz | 11.70 | R22 |
| 220V/50HZ, 1phase R22 EVI | |||||||
| HP | cc/Rev. | model | kw | kw | w/w | A | KG |
| 2.5 | 41 | VRI30KS-PFS-582 | 7.35 | 2.27 | 3.24 | 11 | 22.1 |
| 2.8 | 46.2 | VRI34KF-PFS-582 | 8.25 | 2.61 | 3.16 | 11.8 | 22.1 |
| 380V/50HZ,3Phase EVI | |||||||
| HP | cc/Rev. | model | kw | kw | w/w | A | KG |
| 2.5 | 41 | VRI30KS-PFS-582 | 7.33 | 2.27 | 3.23 | 4.3 | 22.2 |
| 4.3 | 70.4 | VRI52KS-TFP-542 | 12.8 | 3.8 | 3.37 | 6.8 | 29.9 |
| 4.5 | 73.1 | VRI54KS-TFP-542 | 13.2 | 3.98 | 3.31 | 7.6 | 29.9 |
| 4.5 | 73.1 | VRI52KS-TFP-54E | 13.2 | 3.98 | 3.31 | 7.6 | 29.9 |
| 4.8 | 77.2 | VRI57KF-TFP-542 | 13.9 | 4.41 | 3.17 | 9.1 | 29 |
| 5.1 | 82.7 | VRI61KF-TFP-542 | 14.95 | 4.6 | 3.25 | 8.4 | 29 |
| 5.1 | 82.7 | VRI61KF-TFP-54E | 14.95 | 4.6 | 3.25 | 8.4 | 29 |
| 8 | 127.2 | VRI94KS-TFP-522 | 23.3 | 6.85 | 3.4 | 12.7 | 57.2 |
| 9 | 142.9 | VRI108KS-TFP-522 | 26.4 | 7.55 | 3.49 | 13.8 | 59.9 |
| 10.4 | 167.2 | VRI125KS-TFP-522 | 31 | 8.9 | 3.47 | 15.8 | 61.2 |
| 12 | 190.9 | VRI144KS-TFP-522 | 35 | 10.15 | 3.47 | 18.5 | 61.2 |
| (380V-420V)/50HZ,460V/60HZ,3Phase EVI | |||||||
| HP | cc/Rev. | model | kw | kw | w/w | A | KG |
| 8 | 127.2 | ZRI94KC-TFD-522 | 23.3 | 6.85 | 3.4 | 12.7 | 57.2 |
| 9 | 142.9 | ZRI108KC-TFD-522 | 26.4 | 7.6 | 3.47 | 13.8 | 59.9 |
| 10.4 | 167.2 | ZRI125KC-TFD-522 | 31 | 8.9 | 3.47 | 15.8 | 61.2 |
| 12 | 190.9 | ZRI144KC-TFD-522 | 35 | 10.1 | 3.47 | 18.5 | 61.2 |
