Piston Type: | Scroll | Power Source: | AC Power |
---|---|---|---|
Configuration: | Stationary | Drive Mode: | Electric |
Horse Power: | 2.5HP | Temperature: | Med Temperature |
Refrigerant: | R404A | Sightglass: | Compressor with sightglass |
Qty/one pallet: | 16pcs | Color: | Black |
Net Weight: | 25KG | Gross Weight: | 29KG |
L*W*H: | 242*242*389 | ||
লক্ষণীয় করা: | copeland a c compressor,commercial refrigeration compressor |

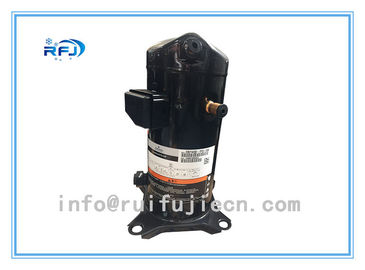

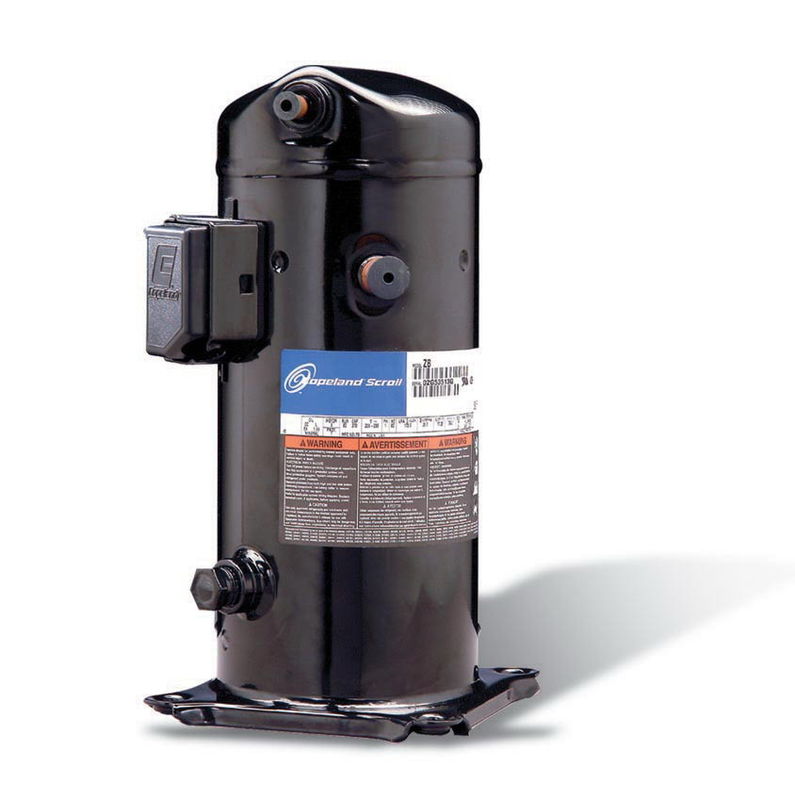

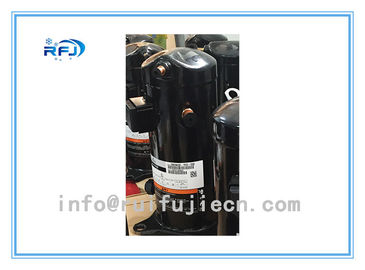

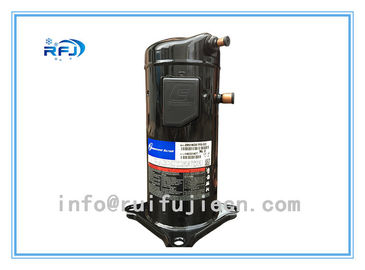

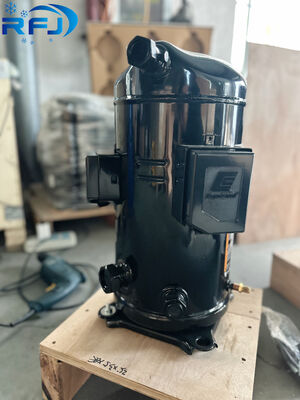

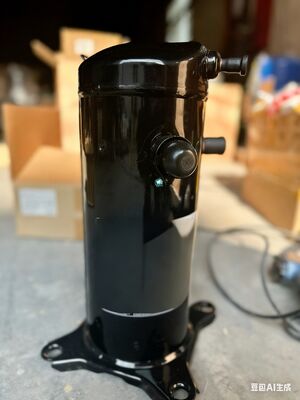

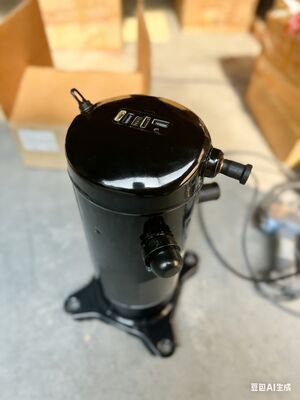

Refrigeration Compressors 2.5HP Copeland scroll compressor ZB19KQE-PFJ-558 R404a for Air-Conditioner ,Cool Room
Specifications:
Copeland:
1.All models on sale
2.Competitive Price
3.Continuous Supply Capacity
Copeland Features:
1.Low energy consumption
2.Stable operating
3.Easy to dismantle and install
Description:
Copeland Scroll Digital® Technology for simple, step-less capacity modulation.
Applications:
The ZB series is optomized for high and medium temperature applications in the right choise for:
1.Medium temperature:Cold rooms,beverage cooling, vegetable cooling,display cases,plastic molding.
2.High temperature: Process cooling,milk production,grain drying, food preparation areas,flower preservation.
We can supply more ZB models as below
No |
Model |
Qty/Pallet |
Refrigerant |
1 |
ZB15KQ-PFJ-558-2HP/R22 |
16 |
R22 |
2 |
ZB15KQ-TFD-558-2HP/R22 |
16 |
R22 |
3 |
ZB21KQ-PFJ-558-3HP/R22 |
16 |
R22 |
4 |
ZB21KQ-TFD-558-3HP/R22 |
16 |
R22 |
5 |
ZB26KQ-PFJ-558-3.5HP/R22 |
16 |
R22 |
6 |
ZB26KQ-TFD-558-3.5HP/R22 |
16 |
R22 |
7 |
ZB29KQ-TFD-558-4HP/R22 |
16 |
R22 |
8 |
ZB38KQ-TFD-558-5HP/R22 |
16 |
R22 |
9 |
ZB45KQ-TFD-558-6HP/R22 |
16 |
R22 |
10 |
ZB48KQ-TFD-558-7HP/R22 |
16 |
R22 |
11 |
ZB58KQ-TFD-551-8HP/R22 |
12 |
R22 |
12 |
ZB66KQ-TFD-551-9HP/R22 |
12 |
R22 |
13 |
ZB76KQ-TFD-551-10HP/R22 |
12 |
R22 |
14 |
ZB88KQ-TFD-551-12HP/R22 |
12 |
R22 |
15 |
ZB114KQ-TFD-551-15HP/R22 |
12 |
R22 |
16 |
ZB15KQE-PFJ-558-2HP/R404 |
16 |
R404 |
17 |
ZB15KQE-TFD-558-2HP/R404 |
16 |
R404 |
18 |
ZB19KQE-PFJ-558-2.5HP/R404 |
16 |
R404 |
19 |
ZB19KQE-TFD-558-2.5HP/R404 |
16 |
R404 |
20 |
ZB21KQE-PFJ-558-3HP |
16 |
R404 |
21 |
ZB21KQE-TFD-558-3HP |
16 |
R404 |
22 |
ZB26KQE-TFD-558-3.5HP |
16 |
R404 |
23 |
ZB26KQE-PFJ-558-3.5HP |
16 |
R404 |
24 |
ZB29KQE-TFD-558-4HP |
16 |
R404 |
25 |
ZB38KQE-TFD-558-5HP |
16 |
R404 |
26 |
ZB45KQE-TFD-558-6HP |
16 |
R404 |
27 |
ZB48KQE-TFD-558-7HP |
16 |
R404 |
28 |
ZB58KQE-TFD-551-8HP |
12 |
R404 |
29 |
ZB66KQE-TFD-551-9HP |
12 |
R404 |
30 |
ZB76KQE-TFD-551-10HP |
12 |
R404 |
Model NO. |
Cindensate Temperature |
The Evaporation Temperature ° C (R22/50HZ) |
|||||
-12 |
-10 |
-5 |
0 |
5 |
10 |
||
ZB15KQ |
40 |
3300 |
3550 |
4350 |
5200 |
6250 |
7400 |
ZB19KQ |
40 |
3650 |
3950 |
4850 |
5850 |
7000 |
8300 |
ZB21KQ |
40 |
4650 |
5050 |
6200 |
7450 |
8850 |
10500 |
ZB26KQ |
40 |
5100 |
5500 |
6800 |
8200 |
9850 |
11700 |
ZB29KQ |
40 |
6230 |
6790 |
8290 |
9970 |
11800 |
14070 |
ZB38KQ |
40 |
7300 |
8000 |
9950 |
12200 |
14650 |
17300 |
ZB45KQ |
40 |
9400 |
10200 |
12400 |
14900 |
17800 |
21000 |
ZB48KQ |
40 |
10390 |
11285 |
13700 |
16436 |
19574 |
23199 |
ZB58KQ |
40 |
11800 |
12950 |
16100 |
19600 |
19574 |
28000 |
ZB66KQ |
40 |
13950 |
15100 |
18400 |
22200 |
26500 |
31500 |
ZB76KQ |
40 |
16400 |
17800 |
21700 |
28500 |
30500 |
35500 |
ZB88KQ |
40 |
18800 |
20400 |
24900 |
30000 |
36000 |
42000 |
ZB95KQ |
40 |
19500 |
21400 |
26500 |
32000 |
38200 |
45200 |
ZB114KQ |
40 |
23200 |
25500 |
31700 |
38500 |
41600 |
54500 |
Model NO. |
Cindensate Temperature |
The Evaporation Temperature ° C (R404/50HZ) |
||||||
-25 |
-20 |
-15 |
-10 |
-5 |
0 |
5 |
||
ZB15KQE |
40 |
1870 |
2430 |
3000 |
3700 |
4450 |
5350 |
6350 |
ZB19KQE |
40 |
2490 |
3050 |
3750 |
4550 |
5450 |
6500 |
7700 |
ZB21KQE |
40 |
3000 |
3700 |
4550 |
5000 |
6600 |
7900 |
9350 |
ZB26KQE |
40 |
3500 |
4300 |
5250 |
6350 |
7650 |
9100 |
10800 |
ZB29KQE |
40 |
4070 |
5040 |
6160 |
7460 |
8960 |
10680 |
12650 |
ZB38KQE |
40 |
5100 |
6250 |
7700 |
9300 |
11200 |
13350 |
15800 |
ZB45KQE |
40 |
6000 |
7400 |
9050 |
10950 |
13150 |
15700 |
18600 |
ZB48KQE |
40 |
6579 |
8150 |
9969 |
12074 |
14500 |
17287 |
20471 |
ZB58KQE |
40 |
7050 |
9250 |
11700 |
14400 |
17500 |
21000 |
24900 |
ZB66KQE |
40 |
8900 |
11100 |
13500 |
16400 |
19600 |
23400 |
27600 |
ZB76KQE |
40 |
10900 |
13300 |
16100 |
19400 |
23300 |
27800 |
33000 |
ZB Series Emerson Copeland Scroll Compressor For Air-conditioning | ||||||||
Model | ZB15KQ ZB15KQE | ZB19KQ ZB19KQE | ZB21KQ ZB21KQE | ZB26KQ ZB26KQE | ZB29KQ ZB29KQE | ZB38KQ ZB38KQE | ZB45KQ ZB45KQE | ZB48KQ ZB48KQE |
Motor type | TFD | |||||||
PFJ | PFJ | PFJ | PFJ | PFJ | ||||
Nominal power(HP) | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 7 |
Displacement(m³/h) | 5.9 | 6.8 | 8.6 | 9.9 | 11.4 | 14.5 | 17.2 | 18.8 |
Starting current(LRA) (Amp.) | ||||||||
TFD | 24.5~26 | 30~32 | 36~40 | 41~46 | 50 | 58.6~65.5 | 67~74 | 101 |
PFJ | 53~58 | 56~61 | 75~82 | 89~97 | 113 | |||
Rated Load Current(RLA) (Amp.) | ||||||||
TFD | 4.30 | 4.30 | 5.70 | 7.10 | 7.90 | 8.90 | 11.50 | 12.1 |
PFJ | 11.4 | 12.9 | 16.4 | 18.9 | 19.3 | |||
Max. operating current (MCC) (Amp.) | ||||||||
TFD | 6.0 | 6.0 | 8.0 | 10.0 | 11.0 | 12.5 | 16.1 | 17.0 |
PFJ | 16 | 18 | 23 | 24 | 27 | |||
Operating capacitance (single-phase) |
40μF/370V | 45μF/370V | 50μF/370V | 60μF/370V | 60μF/370V | |||
Crankcase heater power(W) | 70 | |||||||
Adapter outer diameter(in.) | ||||||||
Discharge Size | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 |
Suction Size | 3/4 | 3/4 | 3/4 | 3/4 | 7/8 | 7/8 | 7/8 | 7/8 |
Dimenson(mm.) | ||||||||
Length(L) | 242 | 242 | 243 | 243 | 242 | 242 | 242 | 242 |
Width(W) | 242 | 242 | 244 | 244 | 242 | 242 | 242 | 242 |
Height(H) | 383 | 389 | 412 | 425 | 430 | 457 | 457 | 457 |
Sole angles (aperture) | 190X190 (8.5) | |||||||
Oil Charge(L) | 1.18 | 1.45 | 1.45 | 1.45 | 1.36 | 1.89 | 1.89 | 1.80 |
Weight(Kg) | ||||||||
Net Weight | 23 | 25 | 27 | 28 | 33 | 38 | 40 | 40 |
Gross Weight | 26 | 29 | 30 | 31 | 37 | 41 | 44 | 44 |
