পণ্যের বিবরণ:
প্রদান:
|
| Piston Type: | Scroll | Power Source: | AC Power |
|---|---|---|---|
| Drive Mode: | Electric | Horse Power: | 4HP |
| Configuration: | Stationary | Temperature: | Med/High Temperature |
| Lubrication Style: | Oil-less | Mute: | Yes |
| Net Weight [kg: | 0 | Oil charge [dm³: | 0 |
| Displacement [m³/h: | 0 | ||
| লক্ষণীয় করা: | copeland ac compressor,commercial refrigeration compressor |
||

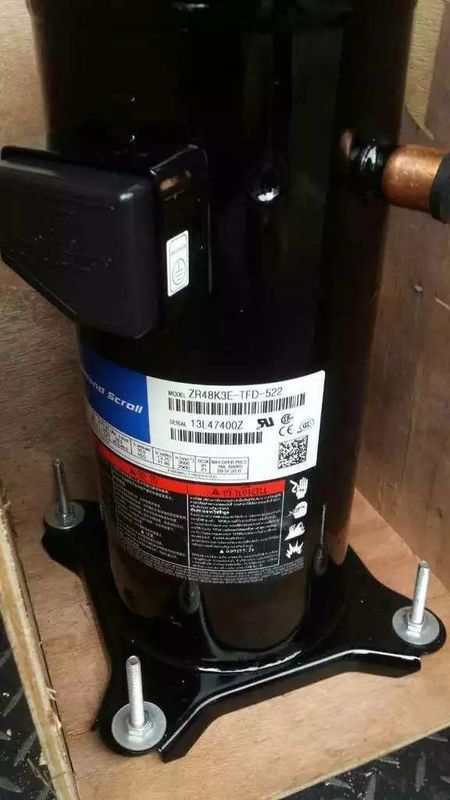

Emerson Copeland Scroll Compressor R134a Refrigeration Scroll Compressor Zr48k3e - Tfd
| Displacement [m³/h]: | 11,5 | |
| Sound power [dBA]: | 68 | |
| Sound pressure level [dB]: | 57 | |
| Net Weight [kg]: | 30,8 | |
| Gross Weight [kg]: | 32,7 | |
| Oil charge [dm³]: | 1,4 | |
| Maximum high pressure [bar]: | 29,5 | |
| Maximum standstill pressure [bar]: | 20 | |
| Maximum lowside temperature [°C]: | 50 | |
| PED category: | 1 |
| Power supply [V/~/Hz]: | 380-420/3/50Hz | |
| Locked rotor current [A]: | 50 | |
| Max. operating current [A]: | 10,0 | |
| Winding resistance [Ω]: | 3,9 |
| inches | |||
| Suction connection with supplied sleeve: | 7/8" | ||
| Discharge connection with supplied sleeve: | 1/2" |
Specifications:
We can supply more ZR models as follow:
| copeland compressors - air conDitioning (cont' D) | |||||
| hBp compressor – three phase | |||||
| Model NO. | Cooling Capacity (rating point 7.2) | nominal hp | Displ. cc/rev | nom current | Weight |
| FLa | (Kg) | ||||
| ZR22K3PFJ522 | 5240 | 1.83 | 30.7 | 9.6 | 26 |
| ZR28K3PFJ522 | 6970 | 2.33 | 39.2 | 12.9 | 27.3 |
| ZR28K3EPFJ522 | 6970 | 2.33 | 39.2 | 12.9 | 27.3 |
| ZR34K3PFJ522 | 8260 | 2.83 | 46.1 | 13.6 | 29.5 |
| ZR34K3EPFJ522 | 8260 | 2.83 | 46.1 | 13.6 | 29.5 |
| ZR36K3PFJ522 | 8850 | 3 | 49.5 | 16.4 | 29.5 |
| ZR40K3PFJ522 | 9620 | 3.33 | 54.19 | 17.1 | 32 |
| ZR42K3PFJ522 | 10140 | 3.5 | 56.8 | 17.1 | 30 |
| ZR47K3PFJ522 | 11500 | 3.9 | 64.1 | 19.3 | 32.6 |
| ZR68KCPFJ522 | 16800 | 5.75 | 93 | 28.2 | 43.5 |
| ZR28K3TFD522 | 6970 | 2.33 | 39.2 | 5 | 26 |
| ZR28K3ETFD522 | 6970 | 2.33 | 39.2 | 5 | 26 |
| ZR36K3TFD522 | 8850 | 3 | 49.5 | 5.7 | 29.5 |
| ZR40K3TFD522 | 9260 | 3.33 | 51.2 | 6.4 | 32 |
| ZR47KCTFD522 | 11400 | 3.9 | 63.2 | 7.2 | 32.6 |
| ZR47KCETFD522 | 11400 | 3.9 | 63.2 | 7.2 | 32.6 |
| ZR48KCTFD522 | 11500 | 4.1 | 67.2 | 7.5 | 38 |
| ZR48KCETFD522 | 11500 | 4.1 | 67.2 | 7.5 | 38 |
| ZR54KCTFD522 | 13000 | 4.5 | 73.2 | 8.2 | 35.5 |
| ZR57KCTFD522 | 13660 | 4.75 | 76.9 | 8.2 | 36 |
| ZR57KCETFD522 | 13660 | 4.75 | 76 | 8.2 | 36 |
| ZR61KCTFD522 | 14700 | 5 | 82.4 | 10 | 35.9 |
| ZR61KCETFD522 | 14700 | 5 | 82.4 | 10 | 35.9 |
| ZR68KCTFD522 | 16500 | 5.75 | 93 | 10 | 38.2 |
| ZR72KCTFD522 | 17800 | 6 | 98 | 10 | 38.2 |
| ZR72KCETFD522 | 17800 | 6 | 98 | 10 | 38.2 |
| ZR81KCTFD522 | 19800 | 6.75 | 110.6 | 12 | 40 |
| ZR81KCETFD522 | 19800 | 6.75 | 110.6 | 12 | 40 |
| ZR94KCTFD522 | 23000 | 8 | 127.2 | 16.2 | 59 |
| ZR94KCTFD523 | 23200 | 8 | 127.2 | 16.2 | 58.2 |
| ZR94KCETFD523 | 23200 | 8 | 127.2 | 16.2 | 58.2 |
| ZR108KCTFD522 | 26670 | 9 | 147.5 | 17.3 | 64 |
| ZR108KCETFD523 | 26670 | 9 | 147.5 | 17.3 | 64 |
| ZR108KCTFD523 | 26900 | 9 | 144.5 | 17.3 | 62.7 |
| ZR125KCTFD522 | 30660 | 10 | 171.4 | 19.2 | 64 |
| ZR125KCETFD523 | 31000 | 10 | 165.6 | 19.2 | 62.7 |
| ZR125KCTFD523 | 31000 | 10 | 165.6 | 19.2 | 62.7 |
| ZR144KCTFD522 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR144KCETFD523 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR144KCTFD523 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR16M3TWD551 | 37700 | 13 | 204.3 | 25 | 103.1 |
| ZR16M3ETWD551 | 37700 | 13 | 204.3 | 17.3 | 103 |
| ZR19M3TWD551 | 45900 | 15 | 241.9 | 23.8 | 112.1 |
| ZR19M3ETWD551 | 45900 | 15 | 241.9 | 23.8 | 119 |
| Phase | Model | Horse Power/HP | Displacement (m3/h) | ARI 7.2/54.4°C | Weight/Kg | Height /mm | |
| Cooling (W) | Input (W) | ||||||
| 1 Phase | ZR16K3-PFJ | 1.33 | 3.97 | 4010 | 1320 | 25.9 | 370.4 |
| ZR18K3-PFJ | 1.5 | 4.37 | 4400 | 1440 | 25.9 | 370.4 | |
| ZR20K3-PFJ | 1.69 | 4.76 | 4890 | 1600 | 25.9 | 370.4 | |
| ZR22K3-PFJ | 1.83 | 5.34 | 5330 | 1730 | 25.9 | 382.8 | |
| ZR24K3-PFJ | 2 | 5.92 | 5920 | 1870 | 26.3 | 382.8 | |
| ZR26K3-PFJ | 2.17 | 6.27 | 6330 | 2000 | 25.9 | 382.8 | |
| ZR28K3-PFJ | 2.33 | 6.83 | 6910 | 2150 | 27.2 | 382.8 | |
| ZR30K3-PFJ | 2.5 | 7.3 | 7380 | 2290 | 28.6 | 405.5 | |
| ZR32K3-PFJ | 2.67 | 7.55 | 7760 | 2410 | 28.1 | 405.5 | |
| ZR34K3-PFJ | 2.83 | 8.02 | 8200 | 2520 | 29.5 | 405.5 | |
| ZR36K3-PFJ | 3 | 8.61 | 8790 | 2700 | 29.5 | 405.5 | |
| ZR40K3-PFJ | 3.33 | 9.43 | 9670 | 2970 | 29.9 | 419.3 | |
| ZR42K3-PFJ | 3.5 | 9.94 | 10100 | 3120 | 29.9 | 419.3 | |
| ZR47K3-PFJ | 3.92 | 11.16 | 11500 | 3530 | 30.4 | 436.6 | |
| 3 Phase | ZR22K3-TFD | 1.83 | 5.34 | 5330 | 1650 | 25.9 | 382.8 |
| ZR24K3-TFD | 2 | 5.92 | 5920 | 1840 | 25.9 | 382.8 | |
| ZR26K3-TFD | 2.17 | 6.27 | 6330 | 1960 | 25.9 | 382.8 | |
| ZR28K3-TFD | 2.33 | 6.83 | 6910 | 2150 | 26.3 | 405.5 | |
| ZR30K3-TFD | 2.5 | 7.3 | 7380 | 2290 | 26.3 | 405.5 | |
| ZR32K3-TFD | 2.67 | 7.55 | 7760 | 2410 | 26.3 | 405.5 | |
| ZR34K3-TFD | 2.83 | 8.02 | 8200 | 2500 | 28.6 | 405.5 | |
| ZR36K3-TFD | 3 | 8.61 | 8790 | 2680 | 27.2 | 405.5 | |
| ZR40K3-TFD | 3.33 | 9.43 | 9670 | 2950 | 28.6 | 419.3 | |
| 2ZR42K3-TFD | 3.5 | 9.94 | 10100 | 3090 | 28.6 | 419.3 | |
| ZR45KC-TFD | 3.75 | 10.73 | 11000 | 3380 | 28.6 | 436.3 | |
| ZR46KC-TFD | 3.83 | 10.95 | 11100 | 3390 | 34.9 | 456.9 | |
| ZR47KC-TFD | 3.92 | 11.16 | 11500 | 3500 | 28.6 | 436.3 | |
| ZR49KC-TFD | 4.08 | 11.45 | 11700 | 3600 | 35.4 | 456.9 | |
| ZR54KC-TFD | 4.5 | 12.73 | 12900 | 4030 | 35.4 | 456.9 | |
| ZR57KC-TFD | 4.75 | 13.42 | 13700 | 4160 | 35.4 | 456.9 | |
| ZR61KC-TFD | 5.08 | 14.34 | 14600 | 4430 | 35.8 | 456.9 | |
| ZR68KC-TFD | 5.75 | 16.18 | 16400 | 4970 | 38.1 | 456.9 | |
| ZR72KC-TFD | 6 | 17.05 | 17400 | 5250 | 38.1 | 456.9 | |
| ZR81KC-TFD | 6.75 | 19.2 | 19690 | 5830 | 40.9 | 462.4 | |
| ZR84KC-TFD | 7 | 19.75 | 20330 | 6140 | 56.7 | 495.3 | |
| ZR94KC-TFD | 8 | 22.14 | 22940 | 7000 | 58 | 495.3 | |
| ZR108KC-TFD | 9 | 25.15 | 26250 | 7830 | 72.6 | 533.4 | |
| ZR125KC-TFD | 10 | 28.77 | 30470 | 9060 | 78 | 533.4 | |
| ZR90K3-TWD | 7.5 | 20.9 | 21540 | 6620 | 91 | 542 | |
| ZR11M3-TWD | 9 | 24.9 | 25840 | 7805 | 91 | 542 | |
| ZR12M3-TWD | 10 | 28.8 | 29890 | 8955 | 92 | 542 | |
| ZR16M3-TWD | 13 | 35.6 | 37330 | 11175 | 98 | 557 | |
| ZR19M3-TWD | 15 | 42.1 | 45170 | 13400 | 112 | 596 | |
