ভালো দাম অনলাইন

পণ্যের বিবরণ

Created with Pixso. বাড়ি Created with Pixso. পণ্য Created with Pixso.
হিমায়ন যন্ত্রাংশ
Created with Pixso. Thermostatic expansion Valves Model T5 - With Interchangeable Orifice Assembly

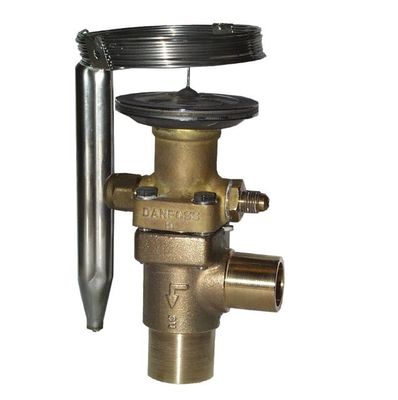

Thermostatic expansion Valves Model T5 - With Interchangeable Orifice Assembly

মডেল নম্বর: T5 Valves
MOQ.: 1pcs
মূল্য: discussed
বিতরণ সময়: 7-10 working days after received your payment
অর্থ প্রদানের শর্তাবলী: L/C, T/T, Western Union
বিস্তারিত তথ্য
Place of Origin:
China/Europ
সাক্ষ্যদান:
CE/ROHS/FCC/SGS
Refrigerant:
R404A/R22/R134a
Export Markets:
Global
Application:
Refrigeration Parts
Material:
Brass
Packing:
Export carton box
Packaging Details:
Carton box
Supply Ability:
5,000pcs per month
বিশেষভাবে তুলে ধরা:

refrigerator tools

,

danfoss expansion valve

পণ্যের বর্ণনা

Valves Model T5 - With Interchangeable Orifice Assembly



Specifications:



  1.  Regriratant:R404A/R22/R134a
  2. Thermostatic expansion valve regulate the flow of refrigerant liquid into The evaporator.
  3. The flow is controlled by the valve is thermal bulb which is Attached to the suction line at the outlet of the evaporator.
  4. The thermal Bulb senses the evaporator heat and adjusts the valve to admit refrigerant Liquid in accordance with the refrigerating load.
Model T5 - With Interchangeable Orifice Assembly
Part Number Description
T5 Power Assemblies
067B3250  Vlv Tx Danf R22 Power Assy Ext.
067B3297  Vlv Tx Danf R134A Power Assy Ext.
067B3342  Vlv Tx Danf R404A Power Assy Ext.
067B3209  Tx Tex12 R22 Power Assy 5M Cap
067B3257  Tey5, R502, Tx Power Assy
067B3267  TX TEX5 R22 POWER ASSY MOP100
T5 Orifice Assembly
067B2089  ORIFICE DANF TE5 SERIES NO.1
067B2090  ORIFICE DANF TE5 SERIES NO.2
067B2091  ORIFICE DANF TE5 SERIES NO.3
067B2092  ORIFICE DANF TE5 SERIES NO.4
T5 Valve Body
068B4007  VLV BODY T/TE5 STRAIGHT SOLDER
068B4009  VLV BODY T/TE5 ANGLE SOLDER
068B4010  VLV BODY T/TE5 ANGLE SOLDER
068B4011  VLV BODY T/TE5 ANGLE SOLDER
068B4013 VLV BODY T/TE5 ANGLE FLARE 1/2
067B4008  VLV BODY T/TE5 STRAIGHT SOLDER
