| ব্র্যান্ড নাম: | Dixell |
| মডেল নম্বর: | XT120C |
| MOQ.: | 1pcs |
| মূল্য: | discussed |
| বিতরণ সময়: | 7-10 working days after received your payment |
| অর্থ প্রদানের শর্তাবলী: | L/C, T/T, Western Union |

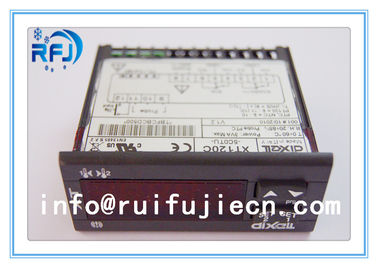

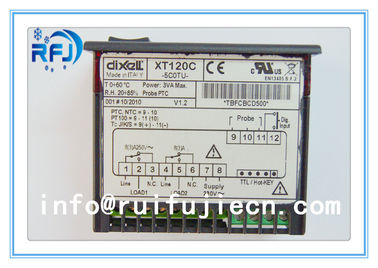

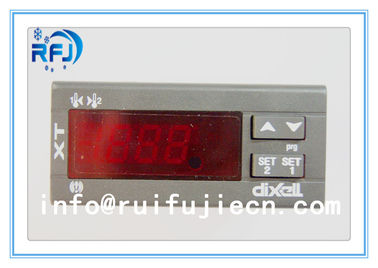

Dixell Thermostat controller Temperature Controller XT120C-5C0TU
Product description:
1.Shell: ABS sublight flame retardant plastic;
2.Dimensions: front 32x74 mm;Deep 60 mm
3.Mounting dimensions: fixed in the open hole for 71x29mm panel;
4.Overall protection level: IP20;Front panel protection level: IP65;
5.Connecting terminal: bolt pressure, the wire diameter is less than 2.5mm2
6.Power supply: 230Vac + 10%, 50/60hz
7.Power consumption: maximum 3VA;
8.Display: 3 red digital tubes, 14.2 mm high;
9.Input: 2 channels NTC or PTC or PT100 or TC-J or TC-K input
10.Output relay: compressor/plus hotline: 20(8)A 250Vac
11.Data storage: electrically erasable electronic writing memory (EEPROM).
12Control level: 1B;Environmental level: 2;Software level: A;
13.Maximum insulation voltage: 2500V;Grade of overvoltage: II;
14.Working temperature: 0 ~ 60 ° C;Storage temperature: - 30 ~ 85 ° C.
15.Relative humidity: 20~85RH% (unexposed)
16.Measure and control temperature range: NTC: - 40 ~ 110 ° C;PTC: - 50 ~ 150 ° C;PT100:60-200 - plus;TC - J: 0 to + 600 ℃, K: 0 to + 999 ℃
17.Resolution: 0.1 ° C or 1 ° C;Precision (at the ambient temperature of 25 ° C), plus or minus 1 ° C + 1
More Models as below:
| XR01CX-5N0C1 | XR02CX |
| XR03CX-5N0C0 | XR03CX |
| XR04CX-5N0C1 | XR04CX |
| XR06CX-5N0C1 | XR06CX |
| XR10CX-5N0C1 | XR10CX |
| XR30CX-5N0C1 | XR30CX |
| XR40CX-5N0C1 | XR40CX |
| XR60CX-5N0C1 | XR60CX |
| XR30CX-5R0C1 | XR20CX |
| XR60CX-5R0C1 |
|
|
| ব্র্যান্ড নাম: | Dixell |
| মডেল নম্বর: | XT120C |
| MOQ.: | 1pcs |
| মূল্য: | discussed |
| প্যাকেজিংয়ের বিবরণ: | Carton box |
| অর্থ প্রদানের শর্তাবলী: | L/C, T/T, Western Union |
Dixell Thermostat controller Temperature Controller XT120C-5C0TU
Product description:
1.Shell: ABS sublight flame retardant plastic;
2.Dimensions: front 32x74 mm;Deep 60 mm
3.Mounting dimensions: fixed in the open hole for 71x29mm panel;
4.Overall protection level: IP20;Front panel protection level: IP65;
5.Connecting terminal: bolt pressure, the wire diameter is less than 2.5mm2
6.Power supply: 230Vac + 10%, 50/60hz
7.Power consumption: maximum 3VA;
8.Display: 3 red digital tubes, 14.2 mm high;
9.Input: 2 channels NTC or PTC or PT100 or TC-J or TC-K input
10.Output relay: compressor/plus hotline: 20(8)A 250Vac
11.Data storage: electrically erasable electronic writing memory (EEPROM).
12Control level: 1B;Environmental level: 2;Software level: A;
13.Maximum insulation voltage: 2500V;Grade of overvoltage: II;
14.Working temperature: 0 ~ 60 ° C;Storage temperature: - 30 ~ 85 ° C.
15.Relative humidity: 20~85RH% (unexposed)
16.Measure and control temperature range: NTC: - 40 ~ 110 ° C;PTC: - 50 ~ 150 ° C;PT100:60-200 - plus;TC - J: 0 to + 600 ℃, K: 0 to + 999 ℃
17.Resolution: 0.1 ° C or 1 ° C;Precision (at the ambient temperature of 25 ° C), plus or minus 1 ° C + 1
More Models as below:
| XR01CX-5N0C1 | XR02CX |
| XR03CX-5N0C0 | XR03CX |
| XR04CX-5N0C1 | XR04CX |
| XR06CX-5N0C1 | XR06CX |
| XR10CX-5N0C1 | XR10CX |
| XR30CX-5N0C1 | XR30CX |
| XR40CX-5N0C1 | XR40CX |
| XR60CX-5N0C1 | XR60CX |
| XR30CX-5R0C1 | XR20CX |
| XR60CX-5R0C1 |
