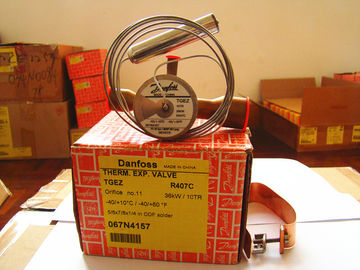

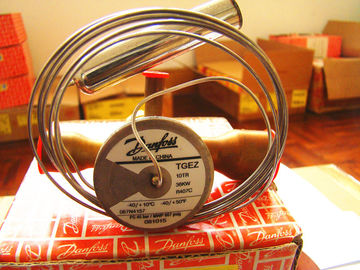

TGEZ Series Thermostatic Refrigeration Valves R407c TGEZ 067N4157

TGEZ Series Thermostatic Refrigeration Valves R407c TGEZ 067n4157

Specifications:

1.  Regriratant: R22/R404A/R507
2. Thermostatic expansion valve regulate the flow of refrigerant liquid into The evaporator.
3. The flow is controlled by the valve is thermal bulb which is Attached to the suction line at the outlet of the evaporator.
4. The thermal Bulb senses the evaporator heat and adjusts the valve to admit refrigerant Liquid in accordance with the refrigerating load.

•  ETS series of electronic expansion valves are used in air conditioning and refrigeration systems, having precise control of liquid supply to the evaporator volume.
•  Linear positioning the valve plug and designed to achieve well-balanced, not only to provide two-way flow balance, but also to get a two-way closed function, like the solenoid valve.

• TYPE Qnom.TR	Nominal Capacity (Kw)	Connection ODF*ODF(inch)	Code No.
  TGEZ 12	42	5/8×7/8	067N4159
  TGEZ 12	42	5/8×11/8	067N4160
  TGEZ 15	53	5/8×11/8	067N4161
  TGEZ 15	53	7/8×11/8	067N4162
  TGEZ 18	62	7/8×11/8	067N4163
  TGEZ 18	62	7/8×13/8	067N4164
  TGEZ 2.5	9	3/8×5/8	067N4150
  TGEZ 2.5	9	1/2×5/8	067N4151
  TGEZ 3.5	13	1/2×7/8	067N4152
  TGEZ 5	19	1/2×5/8	067N4153
  TGEZ 5	19	1/2×7/8	067N4154
  TGEZ 5	19	5/8×7/8	067N4155
  TGEZ 7	25	5/8×7/8	067N4156
  TGEZ 10	36	5/8×7/8	067N4157
  TGEZ 10	36	5/8×11/8	067N4158
  TGEZ 24	84	7/8×13/8	067N4165
  TGEZ 24	84	11/8×13/8	067N4166
  TGEZ 27	95	7/8×13/8	067N4167
  TGEZ 27	95	11/8×13/8	067N4168
  TGEZ 34	121	11/8×13/8	067N4169

•

  Expansion Valve Code	Type
  068Z3501	TEZ 2 flare×flare connection
  068Z3517	TEZ 2 flare×flare connection
  068Z3446	TEZ 2 flare×solder connection
  068Z3447	TEZ 2 flare×solder connection
  068Z3503	TEZ 2 flare×solder connection
  068Z3515	TEZ 2 flare×solder connection
