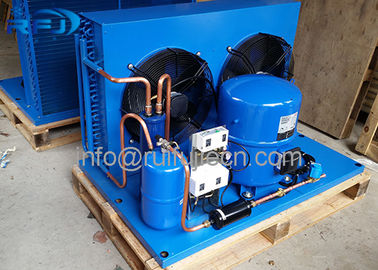

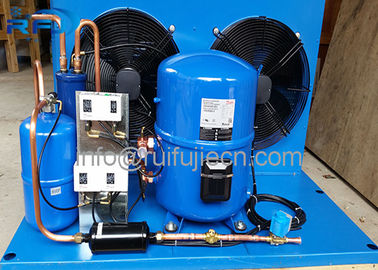

water cooled condenser Hermetic compressor condensing unit
1.Product Description
Independent Operation board:
1. For temp. showing, defrosting controlling, operation system data checking and temp. alarming
2. Can be installed anywhere available.
Fan speed regulator:
Adjust condensing fan according to condensing temp.
Operation data display function:
To check important data such as current of compressor, and condensing temp.
System alarm function:
When fault effects, the system will make alarm sound to remind user
2.Product features:
1),The compressor of the compressor is the original imported brand of French Maneurop (miu), American Copeland (valley wheel)/Carrier (kaili), German (bizl) and other low-temperature compressors;
2), Use cold media such as R404A, R410a, R22/ R407C, etc. to meet the refrigeration temperature and environmental protection requirements;
3), The temperature range: - 5 ℃ ~ 60 ℃ between process chilled water (user according to different production requirements, choose different water temperature of the machine specifications;
4), According to the needs of users, can choose a variety of cooling agent (frozen water) : ethylene glycol aqueous solution, alcohol, ternary mixture and alcohols, refrigerant, evaporator will also be in accordance with the requirements of anti-corrosion design, using calcium chloride aqueous solution;
3.Technical
| model | nominal | refrigerating | specifications of connecting tube | cooling water consumption m3/h | dimension(mm) | installation size(mm) | ||||
| HP | w | return gas(mm) | outlet(mm) | A | B | C | a | b | ||
| MT36/WN03M | 3 | 4330 | 16 | 10 | 1.3 | 810 | 300 | 600 | 600 | 250 |
| MT50/WN05M | 4 | 5210 | 22 | 12 | 1.6 | 1010 | 350 | 720 | 780 | 300 |
| MT64/WN05M | 5 | 6740 | 22 | 12 | 2 | 1010 | 350 | 720 | 850 | 300 |
| MT80/WN08M | 6.7 | 8580 | 28 | 16 | 2.6 | 1080 | 350 | 720 | 890 | 300 |
| MT100/WN10M | 8 | 10210 | 28 | 16 | 3.2 | 1120 | 350 | 800 | 890 | 300 |
| MT125/WN10M | 10 | 13710 | 28 | 16 | 4 | 1120 | 350 | 800 | 990 | 300 |
| MT160/WN15M | 13 | 17300 | 28 | 16 | 5.2 | 1220 | 400 | 800 | 780 | 350 |
