| ব্র্যান্ড নাম: | Ruifujie |
| মডেল নম্বর: | DJ-11.6/70 |
| MOQ.: | 1 |
| মূল্য: | Discussed |
| বিতরণ সময়: | 1 মাস |
| অর্থ প্রদানের শর্তাবলী: | টি/টি, ওয়েস্টার্ন ইউনিয়ন |

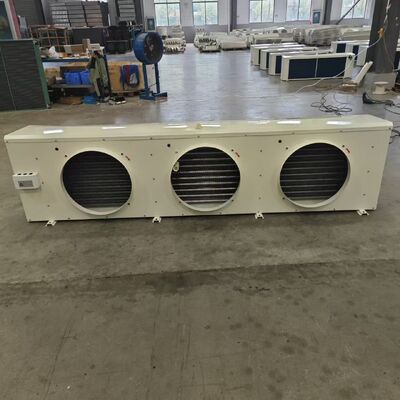

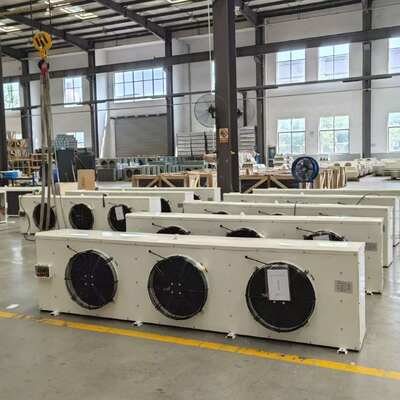

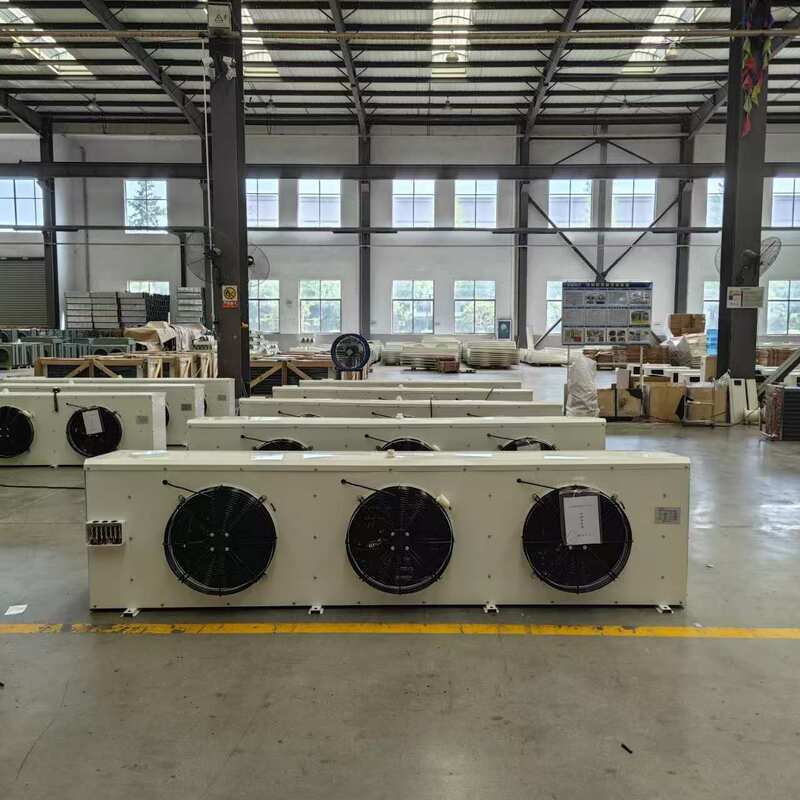

DJ-11.6/70 High Airflow Cold Storage Evaporator
The DJ-11.6/70 high airflow cold storage evaporator is a high-capacity ceiling-mounted air cooler tailored for large-scale low-temperature cold storage, including meat processing plants, large frozen food distribution centers, and cold chain logistics transit warehouses.
Large low-temperature cold storage facilities often struggle with uneven temperature distribution and rapid frost buildup. The DJ-11.6/70 addresses these issues with its multi-fan balanced airflow design and high-power electric defrost system, minimizing temperature variations and reducing downtime.
Constructed with high-purity copper heat exchange tubes and 9mm aluminum fins, this evaporator features excellent corrosion resistance and efficient heat transfer, optimized for continuous operation in temperatures as low as -25℃. The 9mm fin spacing balances airflow efficiency and anti-frost performance, reducing the risk of ice blockage in high-humidity environments.
| Model | DJ-11.6/70 |
|---|---|
| Nominal Cooling Capacity | 11600 W |
| Applicable Cold Room Area | 70 ㎡ |
| Tube Volume | 17.3 L |
| Inlet & Outlet Pipe Diameter | φ25 mm / φ40 mm |
| Fin Defrosting Power | 8000 W |
| Drain Pan Defrosting Power | 4000 W |
Ruifujie is a professional refrigeration manufacturer with over 20 years of industry experience. We produce scroll, piston, and screw compressors, plus supporting cold room, quick-freezing, and ice-making equipment.
We offer flexible OEM/ODM services to meet global clients' diverse needs. Our products are exported to Russia, the US, the UK, UAE, and Saudi Arabia. With reliable quality and competitive pricing, we build long-term partnerships with buyers worldwide.
This high-capacity evaporator is designed for large low-temperature cold rooms, such as meat processing plants, large frozen food distribution centers, and cold chain logistics transit warehouses, where uniform cooling over a large area is required.
Equipped with 3 high-performance 500mm fans, it delivers an airflow of 18000m³/h with a 15m air range, ensuring even air circulation and eliminating temperature stratification in large, high-bay warehouses.
It features a high-power electric defrost system with 8000W fin defrost power and 4000W drain pan defrost power to handle heavy frost buildup in high-humidity environments. It is recommended to set the defrost cycle based on the warehouse's humidity and usage frequency to maintain stable operation.
We will send you the quotation within 8 hours after receiving detailed parameters including refrigeration capacity, voltage, refrigerant and working conditions.
Yes, we support OEM services including LOGO printing and multi-language nameplate customization for all our refrigeration products.
|
|
