| ব্র্যান্ড নাম: | Dorin |
| মডেল নম্বর: | H75CC,H300CC,H300CS,H350CC,H380CC,H380SB,H743CC, |
| MOQ.: | 1pcs |
| মূল্য: | discussed |
| বিতরণ সময়: | 7-10 working days after received your payment |
| অর্থ প্রদানের শর্তাবলী: | T/T or western Union |
Model
NO.:H75CC,H300CC,H300CS,H350CC,H380CC,H380SB,H743CC,H7500CC,H50CS,H743CC,H75CS,

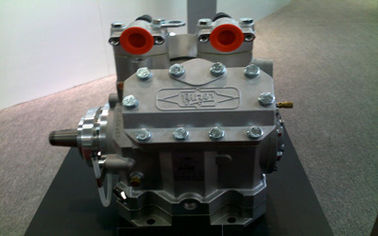

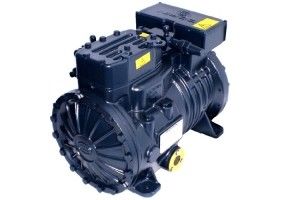

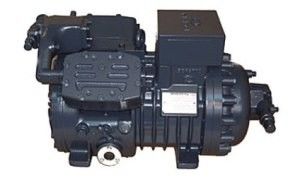

Italy Dorin Refrigeration Semi Hermetic Compressor (H75CC)
Dorin semi hermetic compressors are created to be even more compatible with the characteristics of new refrigerants and the demands of the market related to efficiency, reliability and low noise level.
The range covers displacements from 2.89 to 399, 72 m3/h and normal capacities from 0.5 to 150 HP.
The main characteristics of the compressors are:
Suitable for all main refrigerants available, as R404A, R134A, R407C, R507 and R22.
Wide compressor range for every kind of running conditions.
| Description | Value |
|---|---|
| displacement 50 Hz [m3/h] | 3,86 |
| displacement 60 Hz [m3/h] | 4,63 |
| cylinders | 2 |
| bore [mm] | 42 |
| stroke [mm] | 16 |
| suction valve [mm] | 12 s. |
| discharge valve [mm] | 12 s. |
| oil charge [kg] | 1,0 |
| net weight [kg] | 36 |
| FLA 220-240/3/50 250-280/3/60 delta [A] | 4.2 |
| FLA 380-420/3/50 440 480/3/60 star [A] | 2.4 |
| FLA 380-420/3/50 440 480/3/60 PWS [A] | - |
| LRA 220-240/3/50 250-280/3/60 delta [A] | 19.2 |
| LRA 380-420/3/50 440-480/3/60 star [A] | 11.1 |
| LRA 380-420/3/50 440-480/3/60 PWS [A] | - |
|
|
| ব্র্যান্ড নাম: | Dorin |
| মডেল নম্বর: | H75CC,H300CC,H300CS,H350CC,H380CC,H380SB,H743CC, |
| MOQ.: | 1pcs |
| মূল্য: | discussed |
| প্যাকেজিংয়ের বিবরণ: | Wooden box |
| অর্থ প্রদানের শর্তাবলী: | T/T or western Union |
Model
NO.:H75CC,H300CC,H300CS,H350CC,H380CC,H380SB,H743CC,H7500CC,H50CS,H743CC,H75CS,
Italy Dorin Refrigeration Semi Hermetic Compressor (H75CC)
Dorin semi hermetic compressors are created to be even more compatible with the characteristics of new refrigerants and the demands of the market related to efficiency, reliability and low noise level.
The range covers displacements from 2.89 to 399, 72 m3/h and normal capacities from 0.5 to 150 HP.
The main characteristics of the compressors are:
Suitable for all main refrigerants available, as R404A, R134A, R407C, R507 and R22.
Wide compressor range for every kind of running conditions.
| Description | Value |
|---|---|
| displacement 50 Hz [m3/h] | 3,86 |
| displacement 60 Hz [m3/h] | 4,63 |
| cylinders | 2 |
| bore [mm] | 42 |
| stroke [mm] | 16 |
| suction valve [mm] | 12 s. |
| discharge valve [mm] | 12 s. |
| oil charge [kg] | 1,0 |
| net weight [kg] | 36 |
| FLA 220-240/3/50 250-280/3/60 delta [A] | 4.2 |
| FLA 380-420/3/50 440 480/3/60 star [A] | 2.4 |
| FLA 380-420/3/50 440 480/3/60 PWS [A] | - |
| LRA 220-240/3/50 250-280/3/60 delta [A] | 19.2 |
| LRA 380-420/3/50 440-480/3/60 star [A] | 11.1 |
| LRA 380-420/3/50 440-480/3/60 PWS [A] | - |
